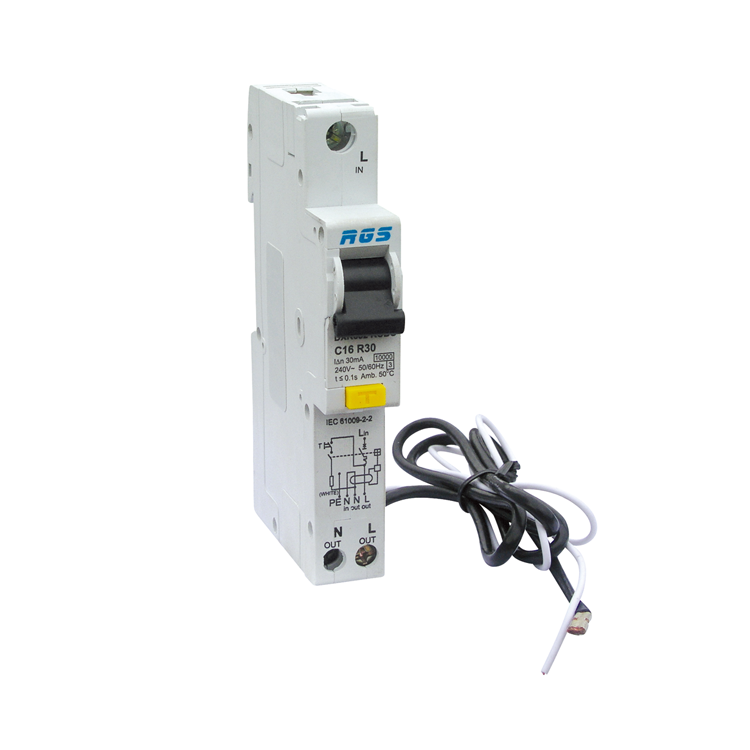

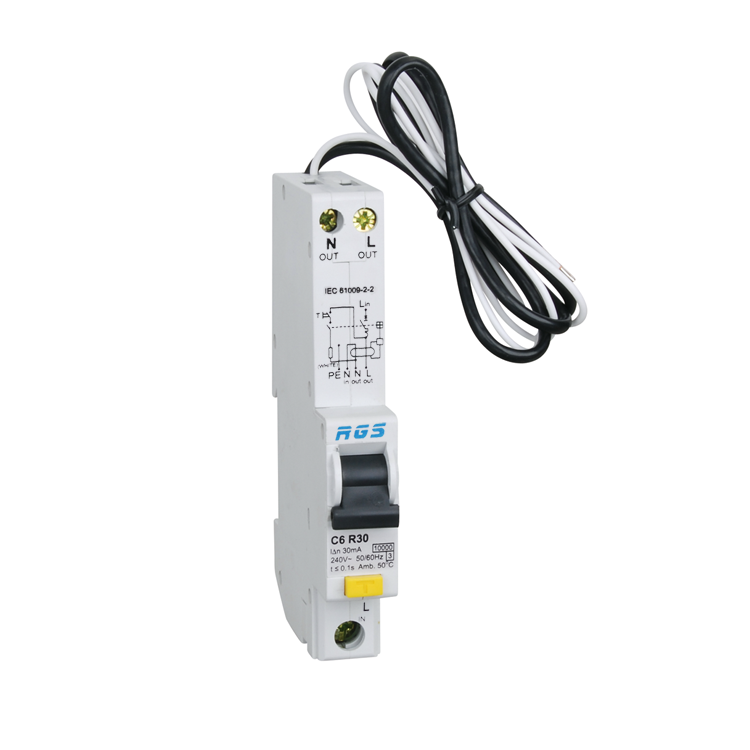

GL018 Residual Circuit Breaker with Over-current Protection

GL018 series residual circuit breaker with overcurrent protection, it' s in accordance.with standards of IEC61009, GB16917. 2P switching of ph&N, Phase only protected against overloads and short circuits. it is used in commercial, industrial and domestic electrical distribution systems.

It mustn' t be used as the sole means of providing protection against direct contact. The RCBO incorporates a residual current operated electromagnetic release which operates without any auxiliary source of suppl to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to In.The RCBO combined MCB&RCCB provides:

Protection against indirect contact

Complementary protection against direct contact

Protection for the installation against in sulation faults
